ultrasonic sensors

Ultrasonic Sensors

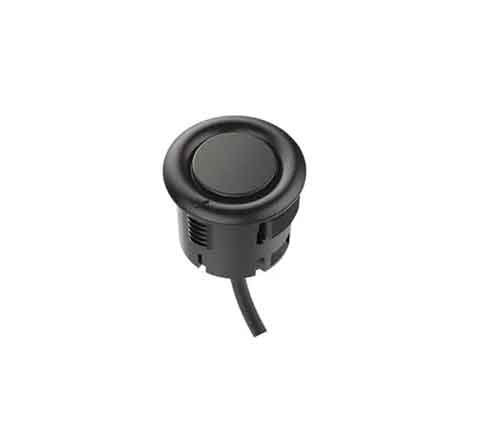

Ultrasonic sensors convert ultrasonic signals into other energy signals usually electrical signals, and have the dual functions of transmitting and receiving sound waves. At present, piezoelectric ultrasonic sensors are commonly used in automotives. Its key component is a piezoelectric wafer in a plastic or metal shell. The ultrasonic sensor composed of piezoelectric crystals is a reversible sensor. It can convert electrical energy into mechanical oscillations to generate ultrasonic waves. At the same time, when it receives ultrasonic waves, it can also convert into electricity. It has the characteristics of high frequency, short wavelength, small diffraction phenomenon, especially good directionality, which can become a ray and propagate in a direction.


Ultrasonic sensors from MAPMS have the following advantages:

  • Simple structure, convenient to manufacture, low cost.

  • Ultrasonic can work in bad weather with strong penetrating power to rain, snow and fog.

  • Ultrasound can be used to identify transparent and poorly reflective objects because unsensitive to light and color.

  • Not easy to be disturbed by the environmental electromagnetic field.


Get the Prices of Ultrasonic Sensors >

Key Features of Ultrasonic Sensors

Simple structure, convenient to manufacture, low cost.

Ultrasonic can work in bad weather with strong penetrating power to rain, snow and fog.

Ultrasound can be used to identify transparent and poorly reflective objects because unsensitive to light and color.

Not easy to be disturbed by the environmental electromagnetic field.



What Are Symptoms For Fail Ultrasonic Sensor?


Ultrasonic sensors are safety aid that work when reversing or parking, which make parking and reversing safer and more convenient. If the following faults occur, you can perform fault diagnosis for troubleshooting.


1. The parking assist system has no alarm prompt.

Fault phenomenon: After the reverse gear is engaged or the radar switch is pressed, the parking assist system does not respond.

Fault diagnosis: ① The working power supply and grounding circuit of the parking assist system are not bright. ② The parking ultrasonic sensor system is not activated. A common cause of failure is that the parking aid conditions are not met, that is, the vehicle is in parked or towed mode. ③ Factors such as road conditions and parking environment.


2. The parking assist system prompts failure.

Fault phenomenon: When using the parking function, the ultrasonic system prompts a fault.

Troubleshooting: ① The probe is faulty or the line from the probe to the controller is abnormal. ②There is no calibration after replacing the new controller or probe.


3. The parking assist system false alarm.

Fault phenomenon: When using the parking function, the ultrasonic also alarms when there is no obstacle.

Troubleshooting: ① The probe is faulty or the surface of the probe is dirty. Common faults are damaged probes, water droplets or dirt on the probe surface. ②It is caused by the installation of license plate frame.
